Wear Resistant Fag Deep Groove Ball Bearing , Thin Section Bearing 40 x 62 x 12mm

Product Categories
YGB Bearing Co.,Ltd
Contact Now

Wear Resistant Fag Deep Groove Ball Bearing , Thin Section Bearing 40 x 62 x 12mm

  • 1
  • 2

Brand Name : YGB,OEM,SKF,NTN

Model Number : 61908 - 2RS

Certification : ISO9001:2008

Place of Origin : China

MOQ : negotiation

Price : negotiation

Supply Ability : 10,000pcs per month

Delivery Time : 5-10 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Payment Terms : T/T or LC

Model : 61908 - 2RS

Size : 40 x 62 x 12mm

Grease : Mobil polyrex EM,Kyodo Yushi SRL

Limiting speed : 22000 r/min

Vibration : V1 V2 V3 V4

Precision rating : P0,P5,P6

Contact Now

Deep groove ball bearing 40 x 62 x 12mm 61908-2RS bearing for agricultural machinery and textile , single ball bearing

Description :

Model 61908 -2RS
Bearing material GCr15/AISI52100/100Cr6
ID*OD*W (mm) 20x27x4 mm
Seal type open, double seals, double shields
Lead time Stock or 15-30days
Weight(kg) 0.012
Basic dynamic load ratings/C 13.8 kN
Basic static load ratings/C0 10 kN
Limiting speed 14000 r/min
Clearance C2,C0,C3,C4,C5
Viberation Level V1,V2,V3,V4
Precision Rating P0,P6,P5,
MOQ No MOQ
Port Shanghai
Grease Mobil polyrex EM,Kyodo Yushi SRL
Payment terms T/T, L/C


Payment
1: T/T: 30% as deposit and 70% balance after getting a copy of B/L.
2: L/C (cannot for branded bearings.)
3: Discuss together between buyer and supplier.


Other Models:

Bearing Bore Outer Diameter Width Load Rating
(KN)		 Steel Ball Parameter Max Speed Weight
NO d D B Dynamic Static NO Size Grease Oil (Kg)
mm inch mm inch mm inch Cr Cor mm r/min r/min
6000 10 0.3937 26 1.0236 8 0.315 4.55 1.95 7 4.763 29000 34000 0.019
6001 12 0.4724 28 1.1024 8 0.315 5.1 2.39 8 4.763 26000 30000 0.022
6002 15 0.5906 32 1.2598 9 0.3543 5.6 2.84 9 4.763 22000 26000 0.03
6003 17 0.6693 35 1.378 10 0.3937 6.8 3.35 10 4.763 20000 24000 0.039
6004 20 0.7874 42 1.6535 12 0.4724 9.4 5.05 9 6.35 18000 21000 0.069
6005 25 0.9843 47 1.8504 12 0.4724 10.1 5.85 10 6.35 15000 18000 0.08
6006 30 1.1811 55 2.1645 13 0.5118 13.2 8.3 11 7.144 13000 15000 0.12
6007 35 1.3779 62 2.4409 14 0.5512 16 10.3 11 7.938 12000 14000 0.16
6008 40 1.5748 68 2.6772 15 0.5906 16.8 11.5 12 7.938 10000 12000 0.19
6009 45 1.7716 75 2.9528 16 0.6299 21 15.1 12 8.731 9200 11000 0.25
6010 50 1.965 80 3.1496 16 0.6299 21.8 16.6 13 8.731 8400 9800 0.26
6011 55 2.1653 90 3.5433 18 0.7087 28.3 21.2 12 11 7700 9000 0.39
6012 60 2.362 95 3.74 18 0.7087 29.5 23.2 13 11 7000 8300 0.42
6013 65 2.559 100 3.937 18 0.7087 30.5 25.2 13 11.11 6500 7700 0.44
6014 70 2.7559 110 4.3307 20 0.7874 38 31 13 12.3 6100 7100 0.6
6015 75 2.9528 115 4.5276 20 0.7874 39.5 33.5 14 12.3 5700 6700 0.64
6016 80 3.1496 125 4.9213 22 0.8661 47.5 40 14 13.49 5300 6200 0.85
6017 85 3.3465 130 5.1181 22 0.8661 49.5 43 14 14 5000 5900 0.89
6018 90 3.5433 140 5.5118 24 0.9449 58 49.5 14 15.08 4700 5600 1.15
6019 95 3.7402 145 5.7087 24 0.9449 60.5 54 14 15.08 4500 5300 1.2
6020 100 3.937 150 5.9055 24 0.9449 60 54 14 16 4200 5000 1.2

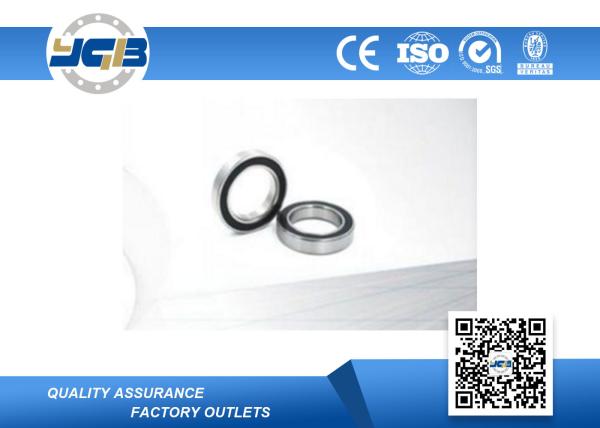

Photo:
Wear Resistant Fag Deep Groove Ball Bearing , Thin Section Bearing 40 x 62 x 12mm
Wear Resistant Fag Deep Groove Ball Bearing , Thin Section Bearing 40 x 62 x 12mm
Drawing:
Wear Resistant Fag Deep Groove Ball Bearing , Thin Section Bearing 40 x 62 x 12mm
Related Products:

Deep groove ball bearings
Cylindrical roller bearings
Needle roller bearings
Thrust ball bearings
Thrust roller bearings
Spherical roller bearings
Angular contact ball bearings

Why Us :
We are an industrial and trading company. We have our own brand:YGB. If you interested in our product,I can take you to visit our factory.
Our factory have advanced testing equipment,before the every product leave the factory,we will be testing.We can send samples to you,you can test the quality,and if you accept the sample quality,we can promise: the follow-up orders’ quality will be the same as samples.
About ordinary standard type of bearing ,We have rich inventory,not have MOQ,if your need a product is Non-standard size,need customize,we will according to the product size to determine the MOQ.
Our company can accept OEM,you can send sample to me,we can manufacture products the same as the sample. Meanwhile,we also can accept some well-known brands of OEM.


Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
