High Speed Stainless Steel Bearing FAG SKF 6310 Open With P0 / P6 / P5 / P4 / P2 Precision Available

Name: High Speed Stainless Steel Bearing FAG SKF 6310 Open With P0 P6 P5 P4 P2 Precision Available
Brand: YGB,OEM,SKF,NTN,FAG
Price: 1 USD

China High Speed Stainless Steel Bearing FAG SKF 6310 Open With P0 / P6 / P5 / P4 / P2 Precision Available factory

Brand Name : YGB,OEM,SKF,NTN,FAG

Model Number : 6310

Certification : ROHS, CE, ISO9001:2008

Place of Origin : Wuxi, China

MOQ : 50 pcs

Price : negotiation

Payment Terms : T/T , L/C

Supply Ability : 1,000,000pcs per month

Delivery Time : within 5- 30 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Application : Machinery Equipments

Material : stainless steel , Gcr15. carbon steel

Seal Type : ZZ, 2RS, Z, RS, RZ, 2RZ

Precision : P0, P6, P5, P4, P2

Virbration : V1, V2, V3

clearance : Co, C2, C3, C4

Contact Now

High Speed Stainless Steel Bearing 6310 open, 6300 Series Bearing, P0, P6, P5, P4, P2 Available

Deep groove ball bearing 6310 open
Description
Deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial and axial loads in both directions.

1. It is the combination of 2 machined and polished grooved raceways (inner &outer rings), guiding a number of appropriate balls, separated by a cage
2. This type bearings mainly take the radial load as well as moderate axial load
3. The Vibrating grades are divided into Z1V1, Z2V2, Z3V3.
4. Simple design and suitable for high speeds
5. Large size range and less coefficient of friction
6. Less noise
7. Robust in Operation and normally require little maintenance

Model	6310
Bearing material	GCr15/AISI52100/100Cr6
IDODW (mm)	50x110x27 mm
Seal type	double seals
Lead time	Stock or 15-30days
Weight(kg)	1.082
Limiting speed	8500 rpm
Clearance	C0,C2,C3,C4
Vibration Level	V1 V2 V3 V4
Precision Rating	P0,P6,P5,
MOQ	Negotiation
Port	Shanghai
Grease	Mobil polyrex EM,Kyodo Yushi SRL
Payment terms	T/T, L/C

BEARING CODE	DIMENSION				LOAD RATING		LIMIT SPEED		INSTALLATION SIZE
	d	D	B	r1,2	Cr	Cor	GREASE	OIL	da
	d	D	B	min	Cr	Cor	GREASE	OIL	min
	mm				KN		r/min		mm
6301	105	37	12	1	8.58	3.92	19000	24000	17
6302	15	42	13	1	11.4	5.4	17000	20000	20
6303	17	47	14	1	13.5	6.55	16000	19000	22
6304	20	52	15	1	16	7.88	13000	16000	26.5
6305	25	62	17	1.1	22.5	11.5	11000	14000	31.5
6306	30	72	19	1.1	26.7	14.9	9000	11000	36.5
6307	35	80	21	1.5	33.4	19.2	8500	10000	43
6308	40	90	23	1.5	40.8	24	7500	9000	48
6309	45	100	25	1.5	48.9	29.3	6700	8000	53
6310	50	110	27	2	57.6	35.3	6300	7500	59
6311	55	120	29	2	71.6	44.8	5600	6700	64
6312	60	130	31	2.1	81.9	51.8	5000	6000	71
6313	65	140	33	2.1	92.8	59.7	4800	5600	76
6314	70	150	35	2.1	104	68	4500	5300	81
6315	75	160	37	2.1	113	77	4300	5000	86
6316	80	170	39	2.1	123	86.5	3800	4500	91
6317	85	180	41	3	133	96.6	3600	4300	98
6318	90	190	43	3	143	107	3400	4000	103
6319	95	200	45	3	153	118	3200	3800	108
6320	100	215	47	3	173	140	3000	3600	113

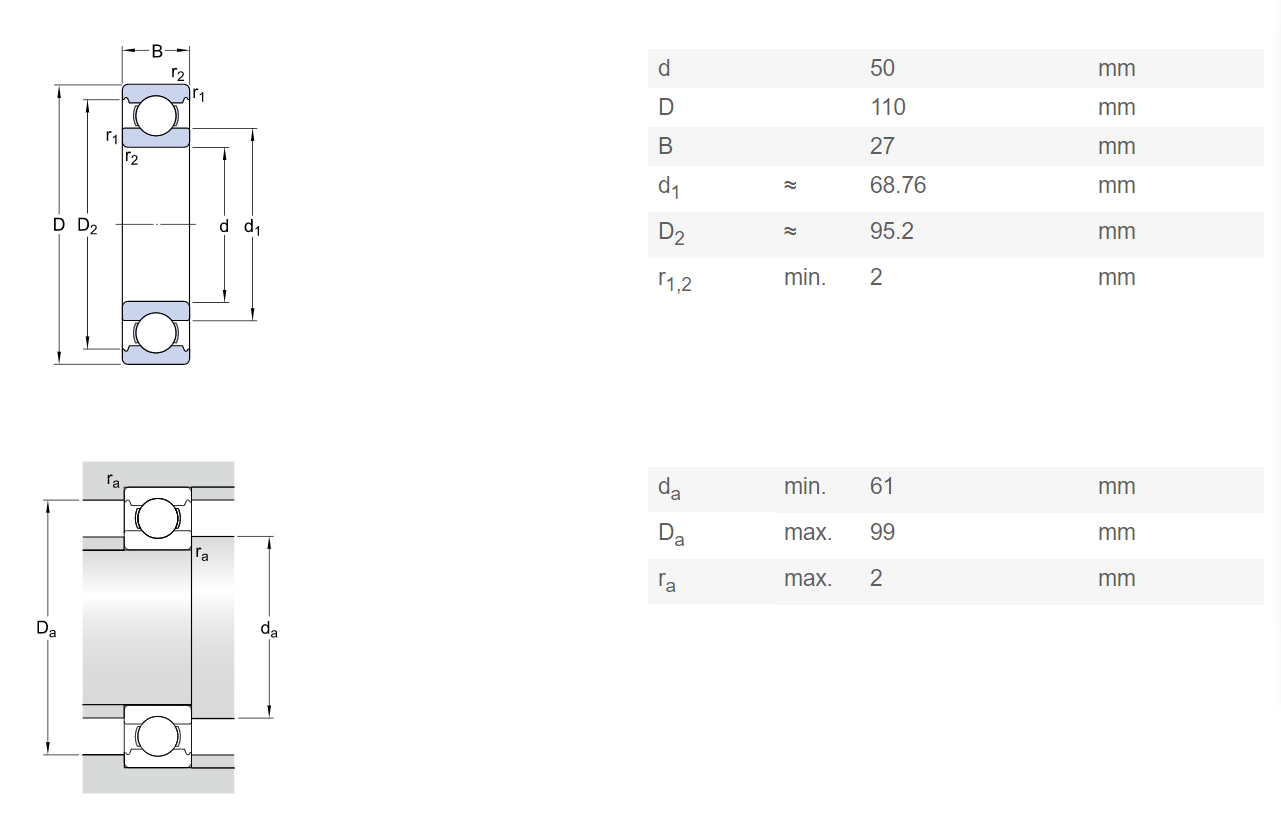

Drawing:
High Speed Stainless Steel Bearing FAG SKF 6310 Open With P0 / P6 / P5 / P4 / P2 Precision Available

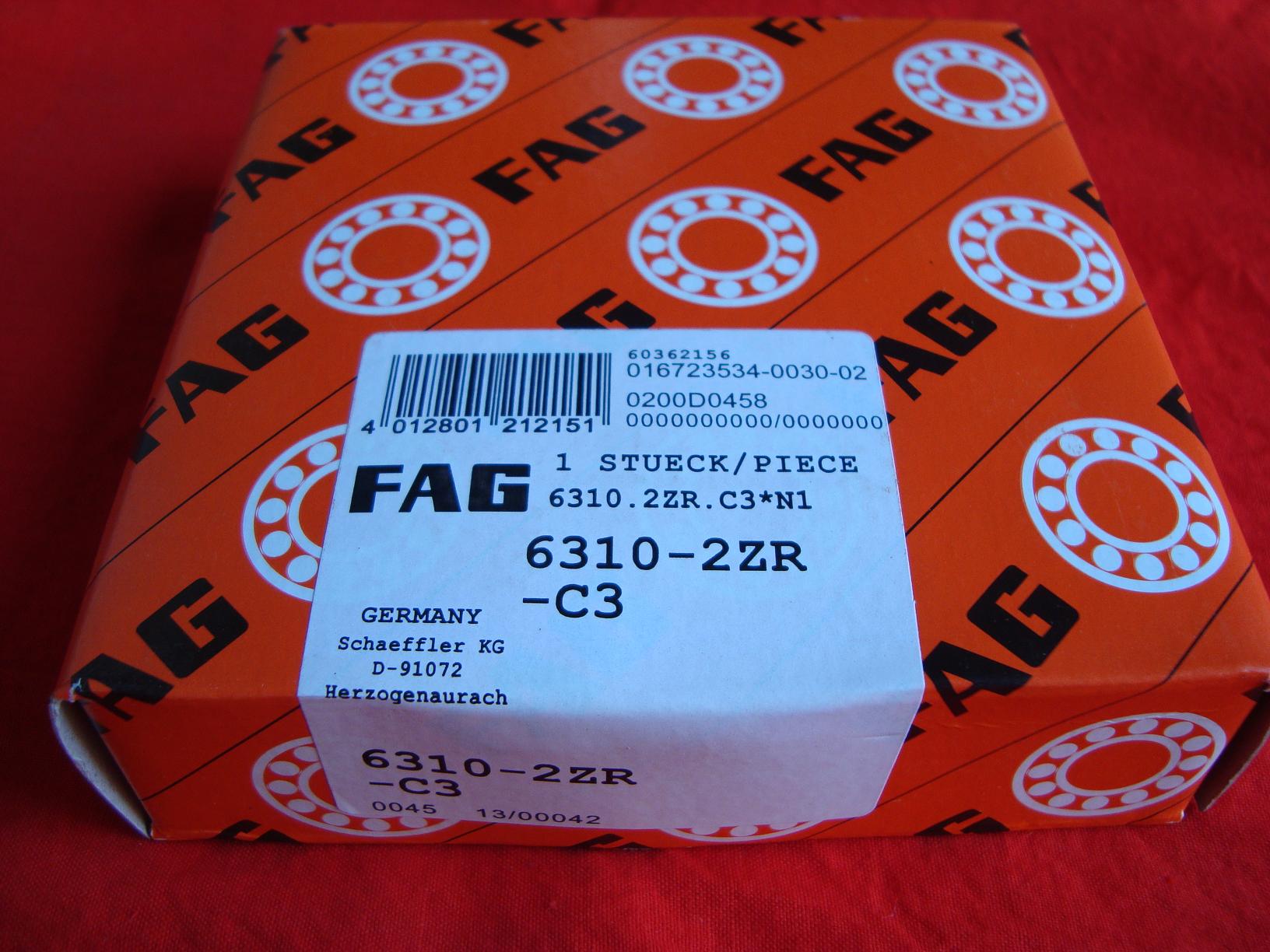

Photo:
